Cummins generator sets
generating sets

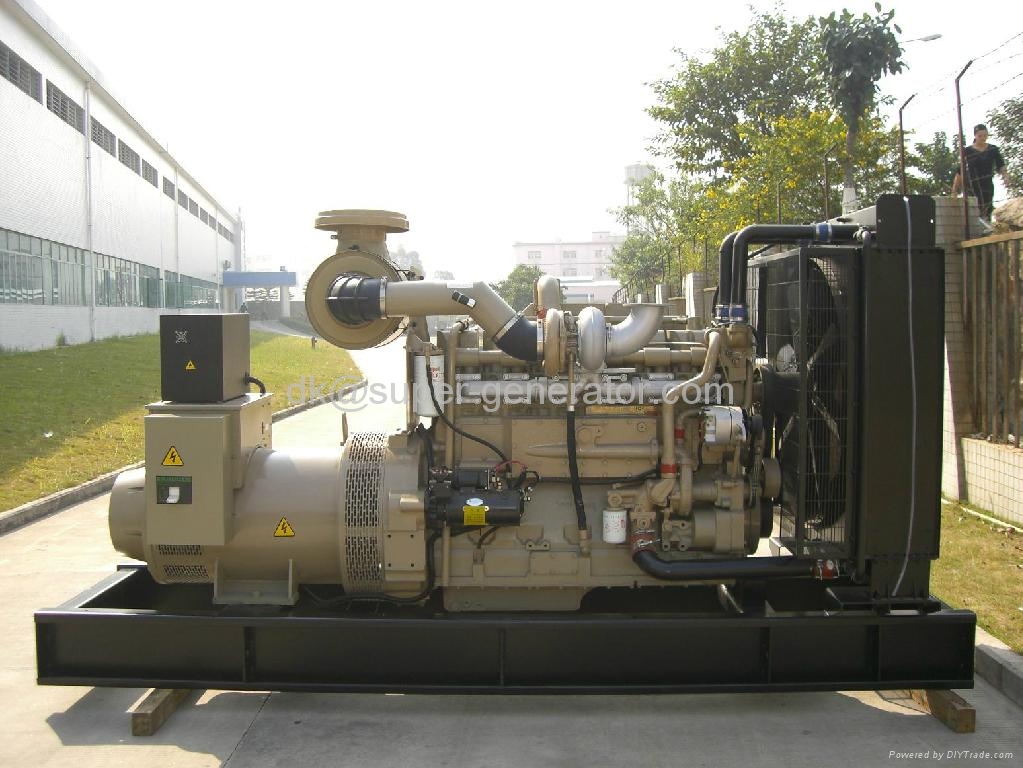

935kw generating sets KTA38-G4-60Hz
use:Land
Frequency Hz:60Hz
DK Model::DK850
Product Name:935kw generating sets -60Hz
Model:KTA38-G4
Prime Power(kw/Kva):850/1063
Standby Power(kw/Kva):935/1169
Rated Current A:1440
Open type  Dimension(L*W*H) mm:4500*2060*2200
Open type  Weight  Kg::9650

Manufacturer:Cummins
Model:KTA38-G4
Exhaust：38
Continuous/Standby（KW):880/970
Aspiration & Cooling:Turbo/Aftercooled
Cylinders Capacity   Lt :12
Cylinders & Build  :V60
Speed RPM :1800
Bore & Stroke   mm×mm :159×159
Compression Ratio:13.9
Governor :EFC
Fuel consumption  g/kw.h :210
Fuel consumption（L/h）:201
Lub-oil Capacity   Litre ：135
max oil temperature （℃）：121
Coolant Capacity   Litre ：194

Max intake resistance（kPa)：6.2
Max exhaust back pressure：10
Flue gas temperature （℃）：528
Thermostat（℃）：82-93

Leroy Somer Model：LSA50.2 S4
Stamford Model ：HCI634H

Output Voltage  V :：480/277
Steady Voltage Adjusting Range:±1%
Insulation：H
Protection：IP23
Ventilation cooling capacity（1/s)：1035
Rated capacity（V)：24
