Cummins gensets
generating sets

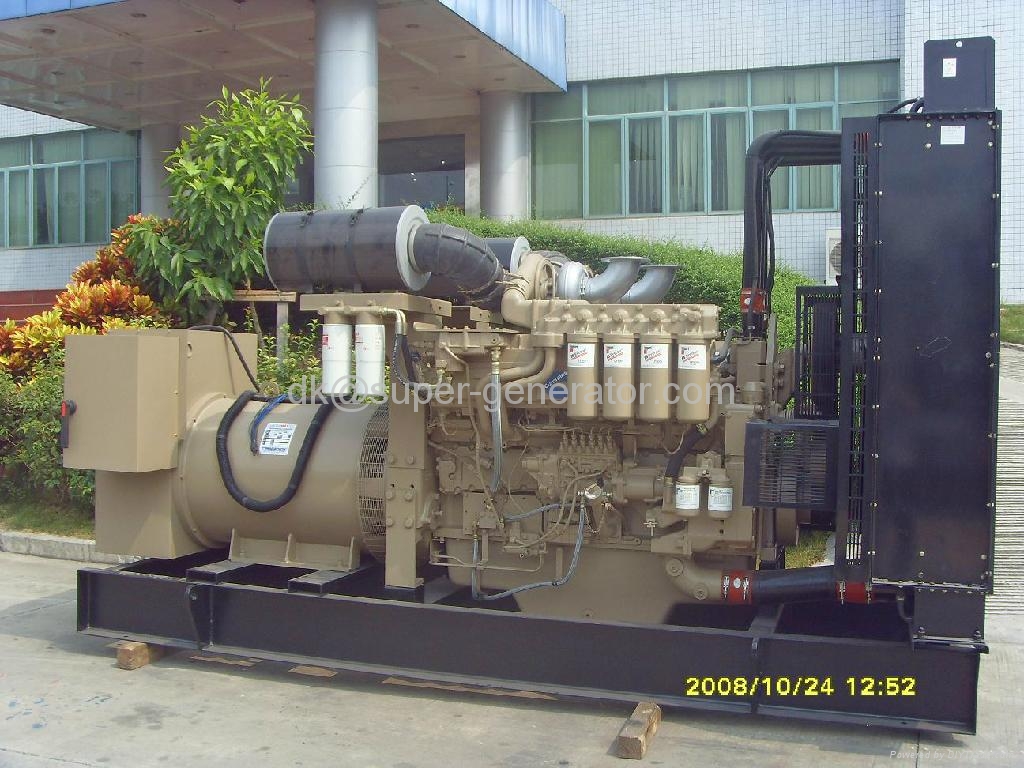

853KVA generating sets KT38-G-60Hz
use:Land
Frequency Hz:60Hz
DK Model::DK620
Product Name:853KVA generating sets -60Hz
Model:KT38-G
Prime Power(kw/Kva):620/775
Standby Power(kw/Kva):682/853
Rated Current A:900
Open type  Dimension(L*W*H) mm:4375*1710*2300
Open type  Weight  Kg::8060

Manufacturer:Cummins
Model:KT38-G
Exhaust：38
Continuous/Standby（KW):560/615
Aspiration & Cooling:Turbo
Cylinders Capacity   Lt :12
Cylinders & Build  :V60
Speed RPM :1800
Bore & Stroke   mm×mm :159×159
Compression Ratio:14.5
Governor :EFC
Fuel consumption  g/kw.h :213
Fuel consumption（L/h）:142
Lub-oil Capacity   Litre ：135
max oil temperature （℃）：121
Coolant Capacity   Litre ：135

Max intake resistance（kPa)：6.2
Max exhaust back pressure：10
Flue gas temperature （℃）：528
Thermostat（℃）：82-93

Leroy Somer Model：LSA49.1 M65
Stamford Model ：HCI534F

Output Voltage  V :：480/277
Steady Voltage Adjusting Range:±1%
Insulation：H
Protection：IP23
Ventilation cooling capacity（1/s)：1035
Rated capacity（V)：24
